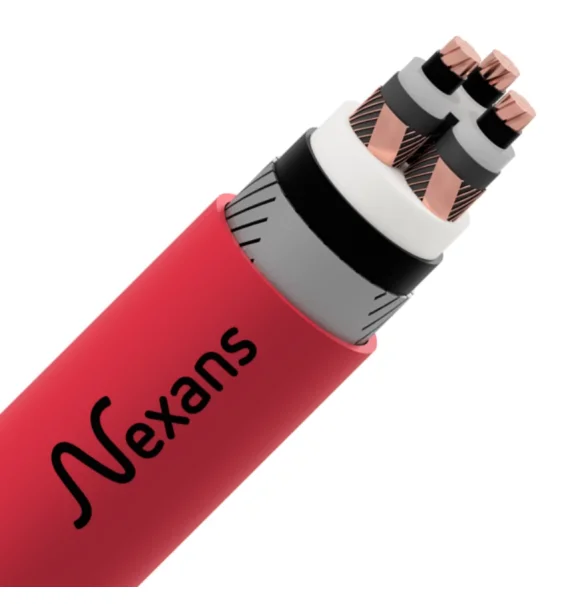

Nexans Armored Cable YXC8VZ3V – N2XSEYFGY – 18/30 kV

Nexans YXC8VZ3V (N2XSEYFGY) 18/30 kV three-core medium voltage cables are designed for high reliability in industrial facilities and power distribution networks. The cable is manufactured with copper conductor, XLPE insulation, copper screen, steel wire armor and PVC sheath. The operating temperature is -20...+90 °C, and the maximum temperature of the conductor in short circuit is 250 °C. Flame retardant: IEC 60332-1-2.

Available sizes
3x50 mm², 3x70 mm², 3x95 mm², 3x120 mm², 3x150 mm², 3x185 mm², 3x240 mm², 3x300 mm², 3x400 mm²
