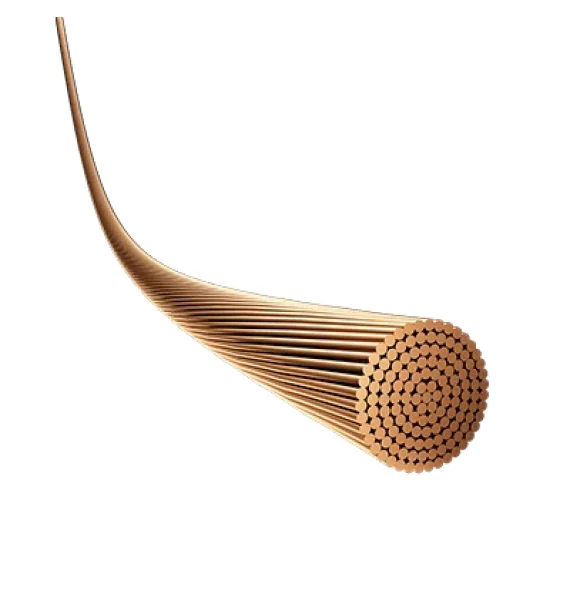

(МГ (ACC)) A flexible wire consisting of copper stranded

MG (ACC) brand wires are intended for use in electrotechnical devices, devices and antenna systems.
These wires are resistant to mechanical loads and environmental influences, providing long-term reliable work.
The copper stranded construction provides high flexibility and durability, making it ideal for mobile and static applications.

Materials

• Conductor: stranded copper (IEC 60228, class V or higher)

• Construction: copper wire twisted with strings (stemmed shape)

Technical features

• Working temperature: -60°C…+55°C

• Tension breaking strength: 560 N for 1.5 mm² to 3920 N for 10 mm²

• Maximum electrical resistance (20°C): 13.3–0.161 Ω/km

• Break resistance: resistant to mechanical tension, dust, sunlight, sea mist, rain and frost

• Term of use: 10 years

Dimensions
1.5–120 mm²
