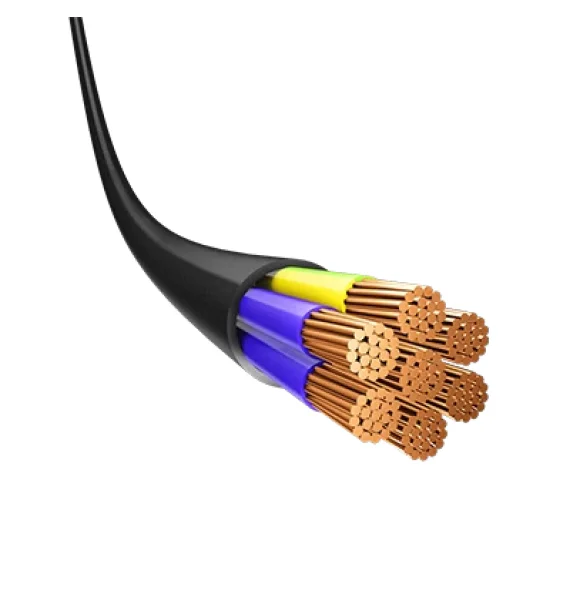

(KuGWW / KuGWWng / KuGWWng – LS) Allovadamly PVC insulated control cable

These branded cables are designed for control, signal transmission and connection of mechanisms to the electrical circuit in AC systems with a nominal working voltage of 660 V and DC systems with 1000 V.
It is reliably used in industrial, automation and lighting systems due to its high elasticity, mechanical strength and resistance to flame propagation.

Materials

• Conductor: stranded copper (GOST 22483 class V)

• Insulation: flame retardant, non-toxic smoke emission PVC

• External coating: flame-resistant, fine smoke emission PVC (in LS version – low smoke and halogen-free composition)

Technical features

• Nominal voltage: 660 V / 1000 V

• Temperature range: -40°C…+50°C

• Relative humidity: 98%

• Period of use: 15 years

Dimensions
0.5 mm² – 10 mm² (1–37 cores)
