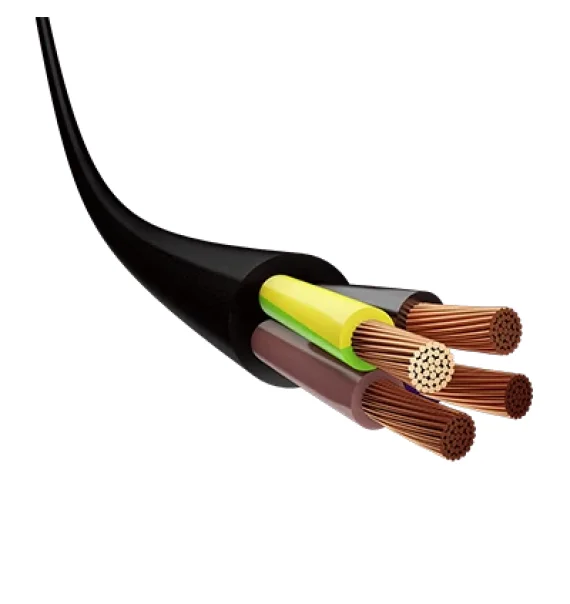

(KГ / H07G-F) Flexible copper power cable with rubber insulation

KГ (H07G-F) brand flexible power cables are intended for the transmission of electrical energy in AC systems with a nominal operating voltage of 660 V and DC systems with 1000 V.
These cables are used in industrial enterprises, stationary or flexible mechanisms, as well as when connecting electrical equipment. Rubber insulation provides high resistance against mechanical shocks, thermal fluctuations and moisture.

Materials

• Conductor: stranded copper (IEC 60228, class V)

• Insulation: rubber (elastic and heat resistant)

• Outer cover: rubber (wear and oil resistant)

Technical features

• Working voltage: 660 V (AC) / 1000 V (DC)

• Temperature range: -40°C…+50°C

• Number of vessels: 1

• Conductor area: 10–150 mm²

• Term of use: 4 years

Dimensions
1×10 mm² – 1×150 mm²
