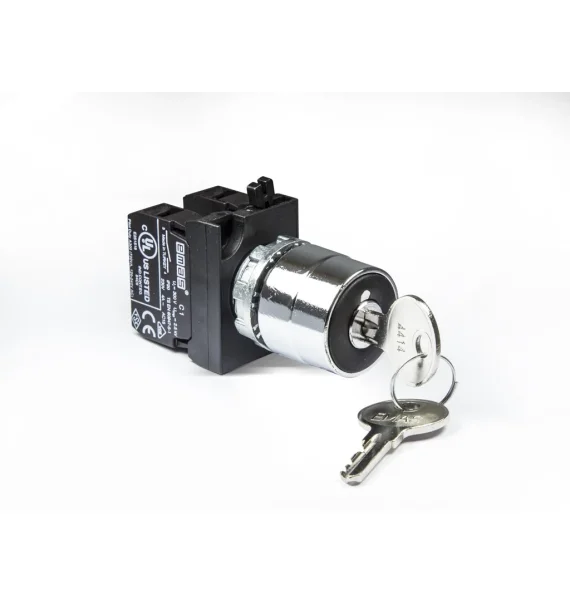

Emas CM Series Metal 2NO II-0-I 60° Keyed Single Turn, Key Released at 0 Position Only 22mm — CM101AA31

Designed for control functions in industrial panels. 3 positions (II-0-I) give option. It has a return function in only one direction with a spring mechanism. The key is removed only in the "0" position, which provides additional security.

Technical specifications (short)

• Contacts: 2NO

• Positions: II-0-I (3 positions)

• Angle: 60°

• Mechanism: single return (single spring return)

• Key removal: only in "0" position

• Panel diameter: 22 mm

• Protection class: IP65

• Operating temperature: −15 … +65 °C
