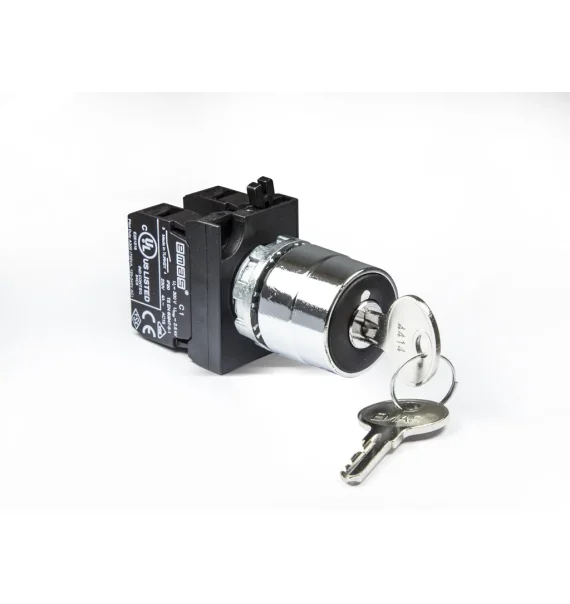

Emas CM Series Metal 2NO II-0-I 60° Keyed Double Turn, Key Released in 0 Position Only 22mm — CM101AA32

Designed for use in industrial control panels. 3 positions (II-0-I) provide selection. It works with a double return spring mechanism and returns to the "0" position after the position in both directions. The key can only be removed in the "0" position, which increases safety.

Technical specifications (short)

• Contacts: 2NO

• Positions: II-0-I (3 positions)

• Rotation angle: 60°

• Mechanism: double spring return

• Key removal: only in "0" position

• Panel diameter: 22 mm

• Protection class: IP65

• Operating temperature: −15 … +65 °C
