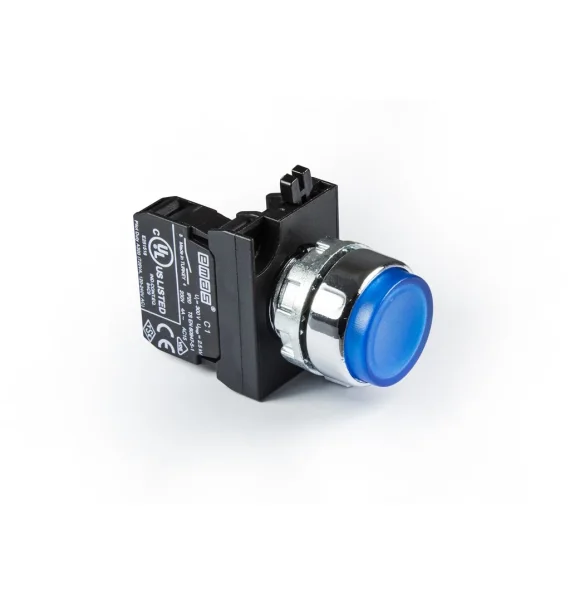

Emas CM Series Metal 1NO Spring Release Blue 22mm Button — CM100HM

This button is intended for control operations on industrial panels; With the blue cap and protruding shape, visibility is increased, when the button is pressed, the contact is made, and when released, the spring mechanism returns it to its original position.

Technical specifications (short)

• Contact: 1NO

• Mechanism: spring-return

• Type: protruding

• Color: blue

• Dia.: 22 mm

• Nominal current: 4 A / 230V AC

• Operation category: AC-15

• Mechanical life: ≥ 500,000 operations

• Electrical life: ≥ 100,000 operations

• Isolation voltage: 300V

• Uimp (impulse withstand voltage): 2.5 kV

• Temperature: −15 … +65 °C

• Protection class: IP65
