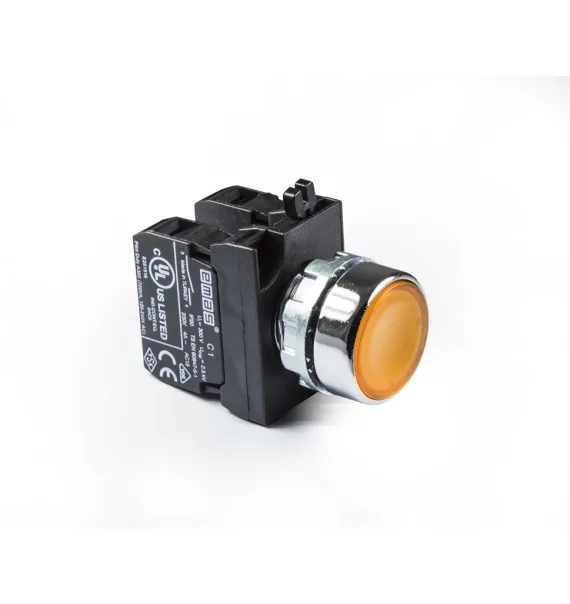

Emas CM Series Metal 1NO-1NC Spring Flat Yellow 22mm Push Button — CM102DS

This button is intended for control and signaling functions in industrial panels; it is used as a warning indicator due to its yellow color. With the contact block 1 NO + 1 NC, both open and closed states are provided, and the spring mechanism performs the reset function after the command is released.

Technical specifications (short)

• Contacts: 1NO + 1NC

• Type: flush, spring-return

• Color: yellow

• Panel diameter: 22 mm

• Nominal voltage: 230V AC

• Working current: 4 A

• Mechanical life: thousand 500 000 operations

• Electric life: thousand 100 000 operations

• Protection class: IP65

• Operating temperature: −15 … +65 °C
