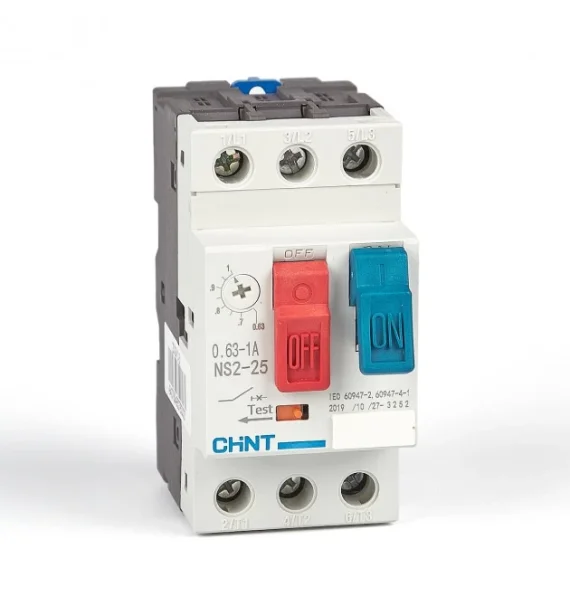

Chint Ns2 25 063 1A Thermal Auto

Chint NS2-25 0.63–1A thermal automatic device reliably protects electric motors against overload, short circuit and phase loss. The device is designed to work both manually and automatically. ON/OFF buttons and a test function provide comfort and safety during use. Manufactured according to the IEC 60947-4-1 standard, this model shows high reliability in industrial and commercial applications.

Technical features

• Current range: 0.63–1A

• Model: NS2-25

• Nominal voltage: 690V AC

• Frequency: 50/60Hz

• Short circuit protection: Yes

• Phase loss protection: Yes

• Reset mode: Manual

• Mounting type: DIN rail or panel mounting

• Compliant standard: IEC 60947-4-1

• Activation type: Key type

Dimensions
0.63–1A
