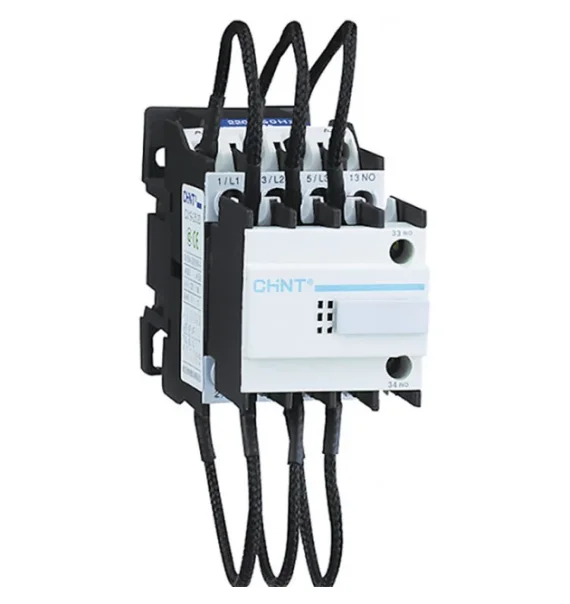

Chint Cj19 4311 Reactive Power Compensation Contactor 20Kvar 1No 1Nc 230V Ac

AZN

Chint CJ19-4311 contactor is designed for controlling capacitors in reactive power compensation systems. This 20kVAr model operates at 230V AC coil voltage and is equipped with 1 open (1NO) and 1 closed (1NC) contact pair. It is characterized by high mechanical durability and low energy loss. Internal resistance elements reduce the current spikes that occur when the capacitors turn on, which increases the safety and longevity of the system.

Technical specifications

Nominal power: 20kVAr
Coil voltage: 230V AC
Contact configuration: 1NO + 1NC
Model: CJ19-4311
Rated current: 43A
Voltage rating: 400V AC
